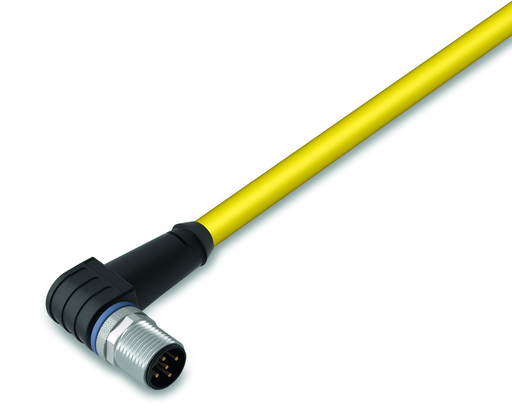

756-1304/060-100

Features

• PUR, halogen-free
• Silicon- and CFC-free
• High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
• High chemical resistance
• Cable used: UL listed

Specifications

Technical Data

• Connection type: M12 plug - Free end
• Pole No.: 5
• Cable connection direction to mating direction: 90 °
• Connector interface coding (cable/adapter) 1 1: B-coded
• Cable length: 10 m
• PLC Manufacturer: WAGO
• Operating voltage: 60 V
• Operating current: 4 A
• Rated surge voltage: 1.5 kV per IEC 61076-2-101
• Contact resistance: 10 mΩ
• Insulation resistance: 5000 MΩ
• Conductor resistance: ≤ 145 Ω/km

Mechanical Data

• Bending radius: 5 x cable diameter (min.)
• Sheathed cable diameter: 6 mm
• Type code: KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded
• Shield: Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
• Conductor design: Bare copper wire (26/7 AWG)
• Conductor insulation: Zell-PE; Core Ø: 1.0 mm (max.)
• Housing material: TPU/TPU, black (~ RAL 9005)
• Contact material: CuZn
• Contact plating: CuNi/Au
• Material properties of the connections: Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton)
• Mating cycles (max.): 100
• Tightening torque: 1 Nm
• Weight: 700.000 g
• Color: Yellow

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Protection type: IP67
• Pollution degree (5): 3/2 per IEC 60664-1
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454791322
• Customs tariff number Sales Organisation Germany: 85444290900
