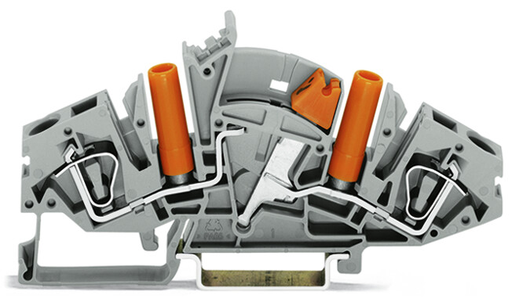

726-122

Features

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-100850, EN 60998
• DEKRA Certification B.V., CSA, 1101143, C22.2 No. 158
• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL-7623, EN 60998

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 10 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection type (1): Page 1
• Connection technology: CAGE CLAMP®
• Number of connection points: 3
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Strip length: 8 … 10 mm / 0.31 … 0.39 inch
• Pole No.: 32
• Wiring direction: Front-entry wiring

Connection 2

• Connection type 2: Page 2
• Number of connection points 2: 3
• Solid conductor 2: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor 2: 0.08 … 1.5 mm² / 28 … 16 AWG

Physical Data

• Width: 44 mm / 1.732 inch
• Height: 132 mm / 5.197 inch
• Depth: 36.5 mm / 1.437 inch

Mechanical Data

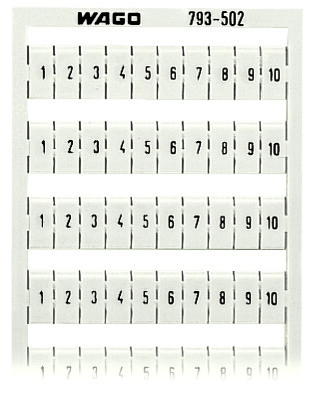

• Marking: A

Material Data

• Color: Dark gray
• Module color: White/gray
• Fire load: 1.840 MJ
• Weight: 167.002 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918455213
• Customs tariff number Sales Organisation Germany: 85369010000
