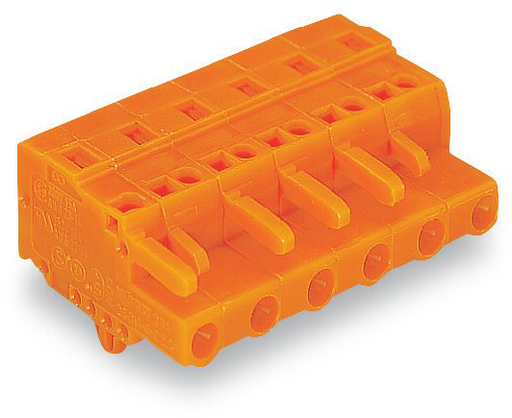

222-415

Features

Approvals

• Lloyds Register, LR, 04/20013 (E8), EN 60998
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
• UL International Germany GmbH, UL, E69654, UL 486C
• UL International Demko A/S, ENEC 15, ENEC-01360, EN 60998
• American Bureau of Shipping, ABS, 18-HG1755093-PDA
• UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467

Specifications

Notes

• Safety information 1: In grounded power lines

Ratings Per Iec/En

• Ratings per: EN 60664
• Nominal voltage (II/2): 400 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 32 A
• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Lever
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 26.6 mm / 1.047 inch
• Height: 14.5 mm / 0.571 inch
• Depth: 20.5 mm / 0.807 inch

Material Data

• Color: Gray
• Flammability class per UL94: V0
• Fire load: 0.130 MJ
• Color of actuator: Orange
• Weight: 6.581 g

Environmental Requirements

• Surrounding air temperature (operation): 40 °C
• Continuous operating temperature: 85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918464956
• Customs tariff number Sales Organisation Germany: 85369010000
