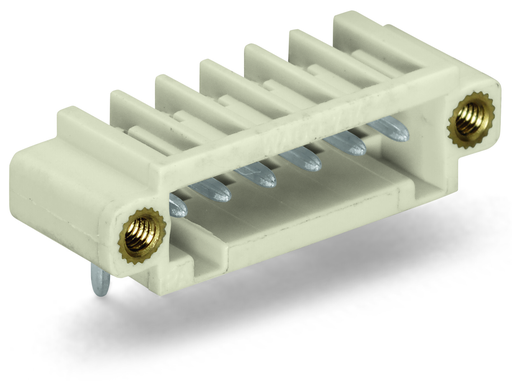

243-744

Features

• 4-conductor female connector with PUSH WIRE® connection
• Can be assembled to connector strips via dovetail joints
• Push-in termination of solid conductors
• Four entries for power supply and potential distribution
• Quick and easy PCB replacement, without disrupting looped-through potentials

Approvals

• DEKRA Certification B.V., CSA, 70048857, C22.2
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• American Bureau of Shipping, ABS, 18-HG1755093-PDA
• DEKRA Certification B.V., CCA, NTR NL 7812, EN 60998
• DEKRA Certification B.V., KEMA/KEUR, 71-112493, EN 60998

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 6 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 150 V
• Rated current UL (Use Group B): 7 A
• Rated voltage UL (Use Group D): 150 V
• Rated current UL (Use Group D): 7 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 150 V
• Rated current CSA (Use Group B): 7 A
• Rated voltage CSA (Use Group D): 150 V
• Rated current CSA (Use Group D): 7 A

Connection 1

• Connection technology: PUSH WIRE®
• Connectable conductor materials: Copper
• Solid conductor: 0.5 … 1 mm² / 24 … 18 AWG
• Conductor diameter: 0.5 … 1 mm / 24 … 18 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 4

Physical Data

• Pin spacing: 5.75 mm / 0.226 inch
• Width: 23 mm / 0.906 inch
• Height: 10 mm / 0.394 inch
• Depth: 10.5 mm / 0.413 inch
• Solder pin length: 4.5 mm
• Solder pin diameter: 1 mm
• Drilled hole diameter with tolerance: 1.2 (-0.05 … +0.05) mm

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mating direction to the PCB: 90 °

Material Data

• Color: Light green
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Copper alloy
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.048 MJ
• Weight: 3.100 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918441988
• Customs tariff number Sales Organisation Germany: 85369010000
